Mouse
und
Mouse-Konsole
 |
|

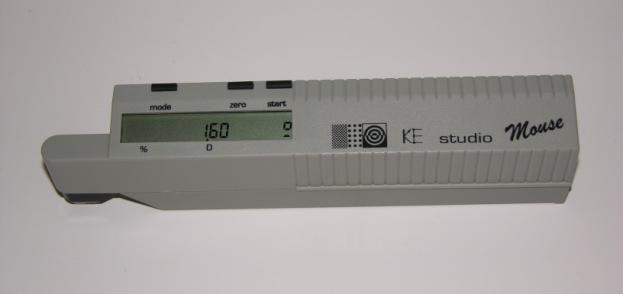

Mouse
Extremely light and handy b&w densitometer.
|
|
Type |
Mouse |
|
Functions |
density
& dot area of gey scales, |
| |
transmission and reflection |
|
Range Density |
0-4.20 (transmission) |
| |
0-2.20 (reflection) |
|
Range Dot |
0-100% |
|
Precision |
±0.01D, ±1% |
|
Linearity |
±0.01D, ±1% |
|
Inter Instrument Agreement |
±0.02D, ±2% |
|
Infrared-Sensitivity |
none |
|
Measuring Speed |
approx.
1 sec |
|
Measuring Geometry |
45/0° |
|
Measuring Aperturer |
3 mm
Ø |
|
Display |
LCD,
15
characters |
|
Power Source |
9 V alkaline battery |
|
Battery Capacity |
approx. 3.000 readings |
|
Dimensions |
HWL
50x35x205 |
|
Weight |
160
g |
|
Accessories |
case, calibration standard, manual |
|
|
This densitometer is also available with integrated
light plate
and extended transmission range (D = 0-6.00):
|
| |
|
 |
|

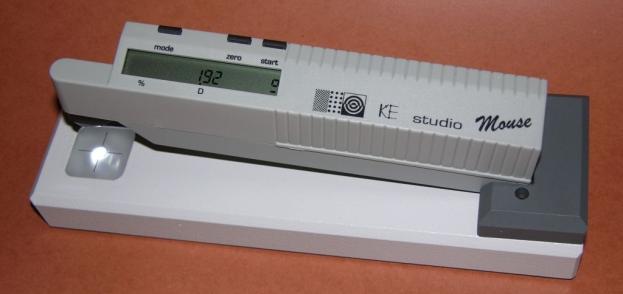

Mouse-Konsole
b&w densitometer with integrated light plate.
|
|
Type |
Mouse-Konsole |
|
Functions |
density & dot area of grey scales, |
| |
transmission and reflection |
|
Range Density |
0-6.00 (transmission) |
| |
0-2.20 (reflection) |
|
Range Dot |
0-100% |
|
Precision |
±0.01D, ±1% |
|
Linearity |
±0.01D, ±1%, ab D = 5,0: ±2% |
|
Inter Instrument Agreement |
±0.02D, ±2% |
|
Infrared-Sensitivity |
none |
|
Measuring Speed |
approx.
1 sec |
|
Measuring Geometry |
45/0° |
|
Measuring Aperture |
3 mm Ø |
|
Display |
LCD, 15
characters |
|
Power Source |
NiCd-Akku 7.2V, 600 mAh |
| |
AC-adapter 230V, 50-60 Hz |
|
Battery Capacity |
approx. 10.000 readings |
|
Dimensions |
HWL 76x78x255 |
|
Weight |
640 g |
|
Accessories |
calibration standard, ac-adapter, manual |
|
|
